Safety Tile Standard TR, 50 x 50 cm, made of SBR rubber granules
Version 1 (Art.-Nr.: 8KLTRx45MFK3)
Safety Tile Standard TR 45, 50 x 50 cm, made of SBR-rubber granules
- Dimensions: 50 cm x 50 cm
- Thickness: 45 mm
- Critical fall height: DIN/EN1177:2018: 1,50 m
- Weight: 27,5 kg/m² (6,9 kg / tile)
- Colours: redbrown, green, black, blue, grey
- Material: SBR-rubber granules (black), bound with (coloured) polyurethane binder
Optional:The safety tile 45 mm can also be supplied with a surface material made of (black, or coloured) EPDM rubber granules (Art.-Nr.: 8KLSTExx45MFK3). Those surfaces do have a more durable colour stability compared to surfaces made of SBR rubber granules.

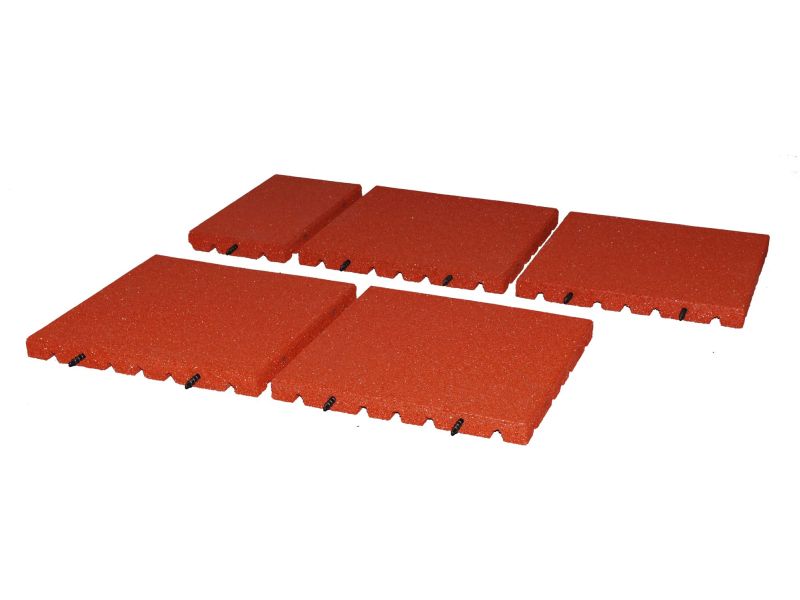

Pin conntector system: The safety tiles 50 x 50 cm are delivered with 2 holes on2 opposite sides for connection with pins (need to be ordered seperately / Art.-Nr.: 8PIN2, + € 1,- / m²). Please pay attention to our installation guidelines.

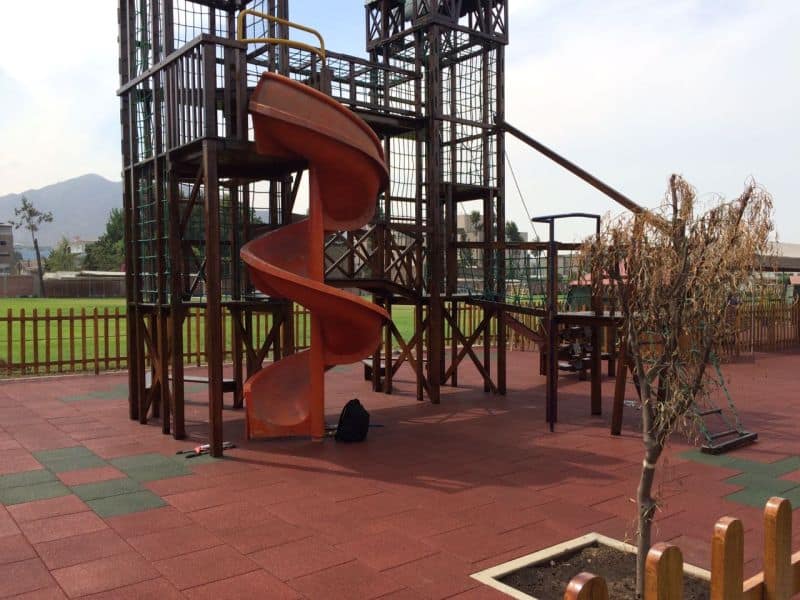

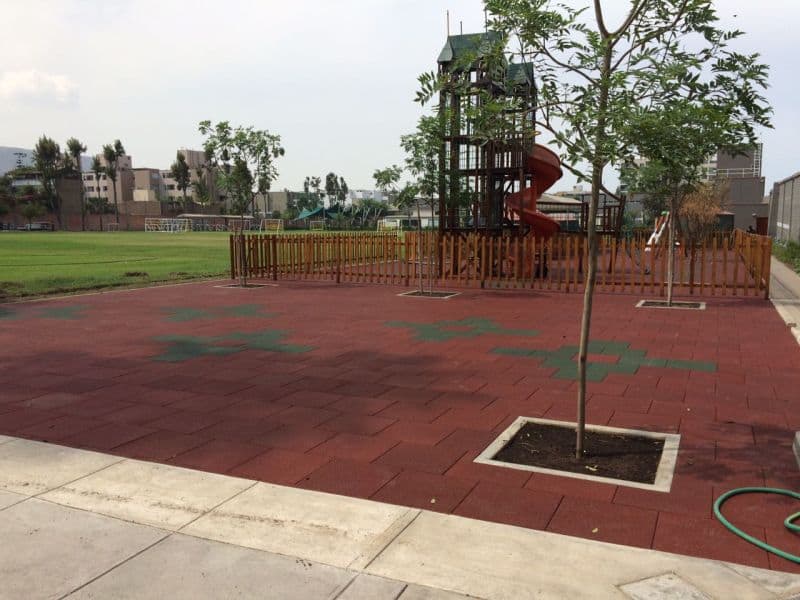

Places of use: Playgrounds, Jump-Castles, Climbing-Walls, rack bars, tabltetennis areas, …
Benefits: fall protection, superior impact resistance, noise reduction, water permeable, quickly drying, quick to install, easy to clean, non-slip
Version 2 (Art.-Nr.: 8KLTRx60MFK3)
Safety Tile Standard TR 60, 50 x 50 cm, made of SBR-rubber granules
- Dimensions: 50 cm x 50 cm
- Thickness: 60 mm
- Critical fall height: DIN/EN1177:2018: 2,06 m
- Weight: 30,5 kg/m² (7,7 kg/ tile)
- Colours: redbrown, green, black, blue, grey
- Material: SBR-rubber granules (black), bound with (coloured) polyurethane binder
Optional: The safety tile 60 mm can also be supplied with a surface material made of (black, or coloured) EPDM rubber granules (Art.-Nr.: 8KLSTExx60MFK3). Those surfaces do have a more durable colour stability compared to surfaces made of SBR rubber granules.
Pin conntector system:The safety tiles 50 x 50 cm are delivered with 2 holes on 2 opposite sides for connection with pins (need to be ordered seperately / Art.-Nr.: 8PIN2, + € 1,- / m²). Please pay attention to our installation guidelines.
Places of use: Playgrounds, Jump-Castles, Climbing-Walls, Reckstangen, Umrandung von Tischtennisplätzen, …
Benefits: fall protection, superior impact resistance, noise reduction, water permeable, quickly drying, quick to install, easy to clean, non-slip
Version 3 (Art.-Nr.: 8KLTRx80MFK3)
Safety Tile Standard TR 80, 50 x 50 cm, made of SBR-rubber granules
- Dimensions: 50 cm x 50 cm
- Thickness: 80 mm
- Critical fall height: DIN/EN1177:2018: 2,61 m
- Weight: 44 kg/m² (11 kg/ tile)
- Colours: redbrown, green, black, blue, grey
- Material: SBR-rubber granules (black), bound with (coloured) polyurethane binder
Optional: The safety tile 60 mm can also be supplied with a surface material made of (black, or coloured) EPDM rubber granules (Art.-Nr.: 8KLSTExx80MFK3). Those surfaces do have a more durable colour stability compared to surfaces made of SBR rubber granules.
Pin conntector system:The safety tiles 50 x 50 cm are delivered with 2 holes on 2 opposite sides for connection with pins (need to be ordered seperately / Art.-Nr.: 8PIN2, + € 1,- / m²). Please pay attention to our installation guidelines.
Places of use: Playgrounds, Jump-Castles, Climbing-Walls, Reckstangen, Umrandung von Tischtennisplätzen, …
Benefits: fall protection, superior impact resistance, noise reduction, water permeable, quickly drying, quick to install, easy to clean, non-slip
Similar Products:
Beveled edges
made of rubber granules
Rubber-curb, 1 m
the elastic edging
Sandpit block
block made of rubber granules
1 m x 30 cm x 15 cm
Safety tiles of 50 x 50 cm
Safety tiles of 50 x 50 cm are easier to handle on the constrution site compared to 1 x 1 m tiles. Installation work is possible by a single person when using such tiles, made of rubber granules
Safety tiles protect against serious head injuries in the event of a fall. In a standardized test procedure, a test institute determines fall heights for fall protection mats at which serious head injuries are avoided. Select the appropriate safety tile based on the possible fall height from your playground equipment. Find the place where a child should still be able to stand on the play equipment (foot position) and measure the height there. For example, determine a possible fall height of 1.7 m, the 45 mm thick fall protection plate is no longer sufficient and you need to choose the 60 mm thick fall protection mat, which has been tested by a test institute for a fall height of 2.0 m.
